A gold logo on a matte black box. Silver text on a cream surface. That metallic shine catches the light and catches the eye — and it tells the customer instantly that this is a premium product. That effect is foil stamping, one of the most impactful finishing techniques in custom packaging.
Foil stamping, also called hot foil stamping, is a printing technique that applies metallic or pigmented foil to a surface using heat and pressure. It creates a shiny, reflective finish that cannot be achieved with standard ink printing. Foil stamping is the most popular premium finish for custom boxes, adding perceived value that justifies higher price points.
This guide covers everything about foil stamping for custom packaging — how the hot foil stamping process works, the types of foil available, how foil stamping compares to embossing and debossing, costs, design considerations, and how to use foil stamping on rigid gift boxes and other packaging. For brands that want packaging that stands out on a shelf, foil stamping delivers impact that standard printing cannot match.
What Is Foil Stamping?
Foil stamping is a finishing technique that uses a heated die and a thin foil film to transfer a metallic or pigmented layer onto a surface. The die presses the foil against the substrate, and the heat activates an adhesive layer on the foil, bonding it to the surface. The result is a sharp, reflective mark that cannot be duplicated with standard ink.
The Foil Stamping Process
- A metal die (brass, magnesium, or copper) is created with the design in reverse
- The die is mounted on a heated stamping press
- A roll of foil is placed between the die and the packaging material
- The heated die presses the foil against the surface
- The heat releases the foil layer, which bonds to the packaging
- The excess foil is peeled away, leaving the design
Key Characteristics of Foil Stampings
| Characteristic | Description |
|---|---|
| Finish | Shiny, reflective, metallic sheen |
| Durability | High — foil is resistant to scuffs and fading |
| Color options | Gold, silver, copper, rose gold, holographic, matte metallics, pigmented colors |
| Substrate compatibility | Paper, board, leather, fabric, plastic |
| Minimum element size | 0.5 mm line width for best results |
| Registration accuracy | ±0.5 mm standard, tighter with registered stamping |
Hot Foil Stamping vs Cold Foil Stamping
There are two main foil stamping methods. The right choice depends on your design, quantity, and substrate.
| Factor | Hot Foil Stamping | Cold Foil Stamping |
|---|---|---|
| Process | Heated metal die presses foil onto surface | UV-cured adhesive bonds foil without heat |
| Die required | Yes (brass, magnesium, or copper) | No — uses standard printing plates |
| Foil adhesion | Mechanical bond through heat and pressure | UV adhesive bond |
| Edge sharpness | Extremely sharp, clean edges | Slightly less sharp |
| Substrate compatibility | Most surfaces including textured | Smooth surfaces best |
| Durability | Very high | Good |
| Speed | Slower (individual stamping) | Faster (runs on printing press) |
| Best for | Premium boxes, small to medium runs, logo stamping | High-volume runs, large foil areas |
| Cost per unit | $0.10–$0.40 | $0.05–$0.15 |
Hot foil stamping is the standard for custom rigid gift boxes. It produces the sharpest, most precise results and works on the wrapped paper surface of rigid boxes. Cold foil stamping is more common for folding cartons and labels where speed and volume matter more than absolute edge quality.

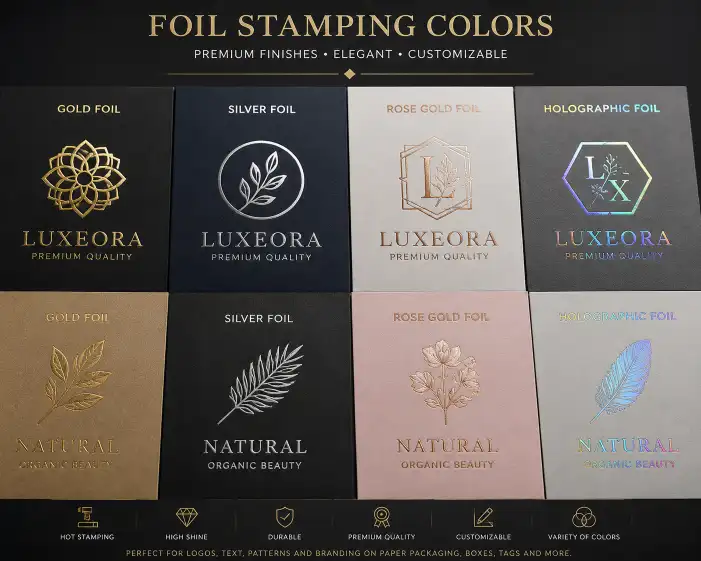

Foil Types and Colors
The foil itself comes in a wide range of finishes. The foil type affects both the appearance and the cost.
| Foil Type | Appearance | Best For | Cost |
|---|---|---|---|
| Gold foil | Bright gold, shiny | Luxury packaging, logos, branding | Moderate |
| Silver foil | Bright silver, reflective | Modern branding, tech products | Moderate |
| Rose gold | Pink-gold tone | Cosmetics, fashion, wedding | Moderate–Higher |
| Copper / bronze | Warm metallic | Rustic or vintage branding | Moderate |
| Holographic | Multi-color rainbow effect | Youth brands, limited edition | Higher |
| Gloss metallic | Shiny, mirror-like | Premium logos, text | Moderate |
| Matte metallic | Metallic sheen without glare | Understated luxury | Moderate–Higher |
| Pigmented foil | Solid color (no metallic shine) | Brands wanting color without metallic | Moderate |
| Pearl / mother of pearl | Iridescent, soft shimmer | Cosmetics, luxury | Higher |
| Clear foil | Transparent, subtle sheen | Minimalist branding | Moderate |
Gold Foil
Gold foil is the most popular choice for custom boxes. It creates an immediate association with luxury and quality. Gold foil works on any background color but shows best on dark or neutral surfaces. The shade of gold can be customized — from pale yellow-gold to deep rich gold.
Holographic Foil
Holographic foil creates a rainbow effect that shifts color as the viewing angle changes. It is popular for brands targeting younger consumers, limited-edition releases, and products where the packaging needs to stand out on a shelf. Holographic foil costs more than standard metallic foil.
Matte Metallic Foil
Matte metallic foil offers the reflective quality of metallic foil without the high shine. It creates an understated, modern look that appeals to luxury brands wanting something different from traditional shiny gold. Matte metallic is increasingly popular for high-end cosmetics and fashion packaging.
Foil Stamping vs Embossing vs Debossing
Foil stamping, embossing, and debossing are often confused because they are all premium finishing techniques that can be used together. Here is how they compare.
| Factor | Foil Stamping | Embossing | Debossing |
|---|---|---|---|
| What it does | Adds metallic color to the surface | Raises the design above the surface | Presses the design into the surface |
| Visual effect | Shiny, reflective metallic mark | Raised, 3D effect | Recessed, indented effect |
| Tactile effect | Smooth (same level as surface) | Raised — you can feel the design | Recessed — a depression in the surface |
| Die type | Brass, magnesium, or copper | Male + female matched dies | Male + female matched dies |
| Setup cost | $100–$300 | $150–$400 | $150–$300 |
| Per-unit cost | $0.10–$0.30 | $0.05–$0.15 | $0.03–$0.10 |
| Substrate | Paper, board, leather, fabric | Thicker materials preferred | Most materials |
| Combined? | Can be combined with embossing | Can be combined with foil | Can be combined with foil |
Foil Stamping + Embossing (Registered Embossing)
Combining foil stamping with embossing creates the most premium finish available for custom boxes. The design is both raised and metallic — the logo physically lifts off the surface and shines. This combination is called registered embossing or combination stamping.
Registered embossing costs significantly more than either technique alone because the foil and embossing must align perfectly. The tolerance is tight — any misalignment is immediately visible. For brands with the budget, however, the result is unmatched.
When to Choose Each Technique
| Your Goal | Recommended Technique |
|---|---|
| Add metallic shine to a logo on a rigid box | Foil stamping |
| Create a tactile raised logo on a thick box | Embossing |
| Press a subtle, elegant logo into a surface | Debossing |
| Maximum premium effect on a luxury box | Foil stamping + embossing (registered) |
| Budget-friendly premium touch | Debossing |
Many brands use multiple techniques across their packaging line — for example, foil stamping on the primary logo and debossing on secondary text. The magnetic gift box guide covers how these finishes apply specifically to magnetic closure boxes.
Foil Stamping Cost Guide
Foil stamping costs depend on die creation, foil material, and the complexity of the stamping job.
Die Costs (One-Time)
| Die Material | Typical Cost | Best For | Durability |
|---|---|---|---|
| Magnesium | $100–$200 | Short runs, simple designs | 50,000–100,000 impressions |
| Brass | $200–$400 | Medium runs, frequent use | 500,000+ impressions |
| Copper | $250–$500 | Long runs, fine detail | 1,000,000+ impressions |
| Photopolymer | $50–$100 | Prototypes, very short runs | 10,000–20,000 impressions |
Per-Unit Foil Stamping Cost
| Stamping Area | 500 Units | 1,000 Units | 5,000 Units | 10,000 Units |
|---|---|---|---|---|
| Small logo (under 10 cm²) | $0.25–$0.40 | $0.15–$0.25 | $0.08–$0.15 | $0.05–$0.10 |
| Medium design (10–50 cm²) | $0.35–$0.55 | $0.20–$0.35 | $0.12–$0.22 | $0.08–$0.15 |
| Large design (over 50 cm²) | $0.50–$0.80 | $0.30–$0.50 | $0.18–$0.32 | $0.12–$0.22 |
| Full surface coverage | $0.80–$1.50 | $0.50–$0.90 | $0.30–$0.60 | $0.20–$0.40 |
Additional Cost Factors
| Factor | Cost Impact |
|---|---|
| Foil type (holographic, special colors) | +$0.05–$0.15 per unit |
| Registered embossing + foil | +$0.20–$0.50 per unit |
| Multi-color foil stamping (2+ foil colors) | +$0.15–$0.40 per additional color |
| Fine detail (small text, thin lines) | +$0.05–$0.10 per unit (higher rejection rate) |
Cost-Saving Tips
- Combine foil with debossing — Debossing costs less than embossing and pairs well with foil
- Use foil sparingly — A small foil logo on the front of the box has more impact than large foil areas, and costs less
- Standardize foil color — Gold and silver are the most economical foils; specialty colors cost more
- Order larger quantities — The die cost is a one-time investment; spreading it across more units reduces per-unit cost
Design Tips for Foil Stamping on Boxes
To get the best results from foil stamping, follow these design guidelines.
Do's and Don'ts
| Do | Don't |
|---|---|
| Use bold, simple designs — thick lines stamp better than thin ones | Use fine text below 6 pt — thin elements may not stamp cleanly |
| Leave adequate space around foil elements | Place foil too close to box edges or folds |
| Use foil on dark backgrounds for maximum contrast | Use gold foil on yellow or light backgrounds — the contrast is lost |
| Specify Pantone color for custom foil matching | Assume all gold foils are the same — shades vary significantly |
| Order a foil strike-off sample before production | Approve the design without testing the foil on your actual material |
Foil Colors by Box Color
| Box Color | Best Foil Color | Effect |
|---|---|---|
| Black | Gold, silver, copper, rose gold | Maximum contrast, classic luxury |
| White | Silver, holographic, rose gold | Clean, modern |
| Cream / ivory | Gold, copper, rose gold | Warm, elegant |
| Dark blue | Gold, silver, rose gold | Rich, premium |
| Kraft brown | Copper, gold, silver | Rustic, natural |
| Red | Gold, silver | Festive, bold |
| Navy | Gold, silver, copper | Sophisticated |
Size Guidelines
- Minimum line thickness: 0.5 mm for clean stamping
- Minimum text size: 6 pt for serif fonts, 5 pt for sans-serif
- Minimum gap between elements: 1 mm to prevent foil bridging
- Maximum continuous area: Keep foil coverage under 60% of the box face for best adhesion
The quality of foil stamping also depends on the surface being stamped. Smooth, coated surfaces (like matte laminated paper) produce the cleanest results. Textured surfaces (like kraft paper or leatherette) can still be foil stamped but will have a slightly softer edge finish.
Products That Benefit Most from Foil Stamping
Foil stamping works for almost any product category, but it creates the most impact in specific segments.
| Product | Recommended Foil | Box Type | Finish Pairing |
|---|---|---|---|
| Luxury skincare | Gold or rose gold | Rigid hinged box with soft-touch coating | Soft-touch + gold foil |
| Perfume and fragrance | Gold or silver | Rigid box with custom insert | Matte lamination + gold foil |
| Chocolate and confectionery | Gold or copper | Rigid box or folding carton | Gloss lamination + copper foil |
| Corporate gifts | Silver or gold | Magnetic gift box | Soft-touch + foil stamping |
| Jewelry | Rose gold or gold | Ribbon box with velvet lining | Velvet + gold foil |
| Spirits and wine | Gold or copper | Rigid box with foam insert | Matte + gold foil |
| Electronics accessories | Silver or holographic | Magnetic box or folding carton | Matte + silver foil |
| Wedding favors | Rose gold or pearl | Small rigid box | White + rose gold foil |
The most common application is foil stamping the brand logo on the front of the box. For rigid boxes, the front face of the lid or the tray front (on drawer boxes) is the primary foil stamping surface. This is the area customers see first on a shelf, and a foil-stamped logo there signals premium quality immediately.
FAQ
What is foil stamping?
Foil stamping is a finishing technique that applies metallic or pigmented foil to a surface using heat and pressure. A heated die presses the foil onto the material, creating a shiny, reflective mark.
What is the difference between hot foil and cold foil stamping?
Hot foil stamping uses a heated metal die to press foil onto the surface. Cold foil stamping uses UV-cured adhesive to bond foil without heat. Hot foil produces sharper edges and is more durable; cold foil is faster and better for high-volume runs.
How much does foil stamping cost?
Foil stamping typically adds $0.10–$0.40 per unit at 1,000 quantity, plus a one-time die cost of $100–$400. The exact cost depends on the stamping area, foil type, and design complexity.
Can foil stamping be combined with embossing?
Yes. Foil stamping combined with embossing (called registered embossing or combination stamping) creates a raised, metallic effect. This is the most premium finish available for custom packaging.
What foil color is best for black boxes?
Gold and silver are the most popular choices for black boxes. Gold creates a classic luxury look; silver creates a modern, sleek appearance. Both provide strong contrast against the black surface.
Is foil stamping durable?
Yes. Foil stamping is highly durable and resistant to scuffs and fading. The foil bonds permanently to the surface and will not peel or wear with normal handling.
What is the minimum text size for foil stamping?
Minimum text size is 6 pt for serif fonts and 5 pt for sans-serif fonts. Line thickness should be at least 0.5 mm. Elements smaller than these may not stamp cleanly.
Can foil stamping be done on any box material?
Foil stamping works on most materials — paper, paperboard, greyboard wrapping, leatherette, and fabric. Smooth, coated surfaces produce the cleanest results. Textured surfaces may have a softer edge finish.
What is the minimum quantity for foil stamped boxes?
Most manufacturers require a minimum of 500 units for foil stamped boxes. The die cost makes smaller quantities uneconomical. Digital foil stamping (using toner-based foil) is available for smaller runs of 100–300 units.
Where can I get foil stamped custom boxes?
You can order foil stamped boxes from a packaging manufacturer that offers foil stamping as a finishing option. Provide your box specifications, design file with foil layer indicated, and choose the foil color.
