How to harden corrugated paperboard?

Are your cardboard boxes too flimsy? This can lead to damaged products and unhappy clients. Learning a few simple techniques can add the strength and rigidity you need.

The best ways to harden corrugated paperboard are by increasing its material density, applying surface coatings or lamination, and improving its structural design. Combining these methods—like using thicker paper, adding a stiffening agent, and including internal supports—creates the strongest result.

You have a great design, but the material itself feels weak. You need it to protect the product inside, not just look good. In my 16 years in packaging, I've seen that the solution isn't always about using a completely different material. Often, it's about getting more performance from the cardboard you're already using. Let’s look at how we can do that.

How to make paperboard stronger?

Is your paperboard not holding up under pressure? Weak materials can lead to boxes collapsing during shipping, which is a nightmare for any business. There are straightforward ways to fix this.

To make paperboard stronger, use higher-grade paper liners¹, increase the material thickness with double or triple walls², or select a more robust flute profile³. These changes directly boost the board's ability to resist compression and prevent crushing.

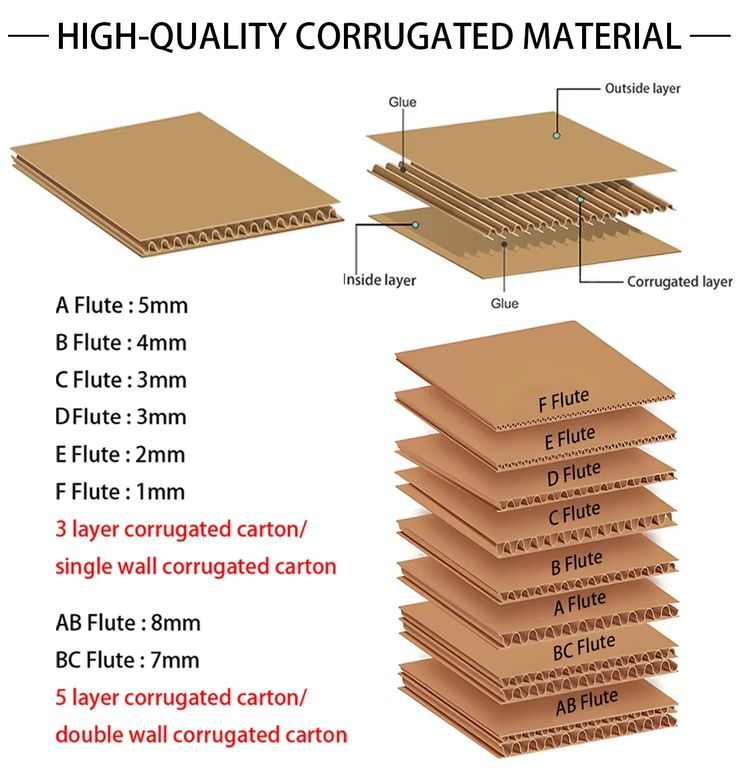

Strength in corrugated board comes down to two things: the paper it's made from and its structure. The paper liners on the outside and the fluted paper in the middle all contribute. At Giftspack, we always start by asking what kind of strength is needed. Are you stacking boxes high? Then you need compression strength⁴. Or are you protecting against sharp objects? Then you need puncture resistance⁵. The choice of flute is critical here. A-flute⁶ is thick and offers great cushioning and stacking strength. C-flute is a good all-around performer. E and F-flutes are very thin, providing a great surface for printing but less protection. For maximum strength, we often recommend double-wall or even triple-wall board, which combines different flutes to get the best of both worlds.

How to make a cardboard stiff?

Does your cardboard bend and warp too easily? This lack of stiffness can make a package feel cheap and unreliable. You can add significant rigidity without a complete redesign.

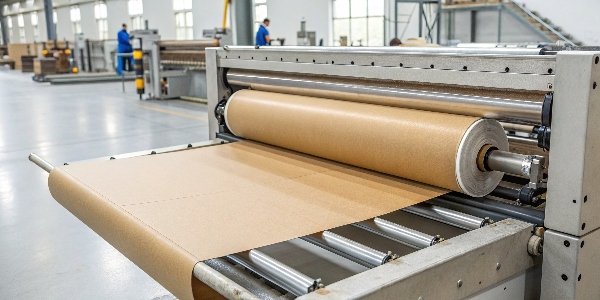

To make cardboard stiff, you can laminate it by adding another layer⁷ of paper or film. You can also apply coatings like starch or resin⁸. These treatments fill the paper fibers and add a rigid surface, greatly increasing resistance to bending.

Stiffness is different from strength. Strength is about resisting force, while stiffness is about resisting bending. I remember a client who needed packaging for sensitive electronic components. The box was strong enough, but it flexed too much, which risked damaging the circuits inside. The solution was not a thicker board, but a stiffer one. We achieved this through lamination. By bonding a thin, high-density paperboard layer to their standard corrugated sheet, we created a composite board. It was barely thicker but was significantly more rigid. Another effective method is impregnation⁹, where you treat the paper with a substance like resin or even sodium silicate. This permeates the paper fibers, making the entire sheet harder and much less flexible. These methods do add cost and can affect recyclability, so it is always a balance.

How to make cardboard boxes sturdier?

Are your assembled boxes getting crushed in transit? A sturdy box is about more than just strong paper; it's about smart design that holds its shape under stress.

Make a cardboard box sturdier by reinforcing its structure. Use internal supports like partitions and pads¹⁰, strengthen the corners, and ensure the corrugated flutes run vertically for maximum stacking strength. This distributes weight and stress properly.

The sturdiness of a finished box depends heavily on how it is designed and put together. I've seen countless cases where a client had a strong material but a weak box. The single most important factor for a sturdy, stackable box is the flute direction¹¹.

Flute Direction

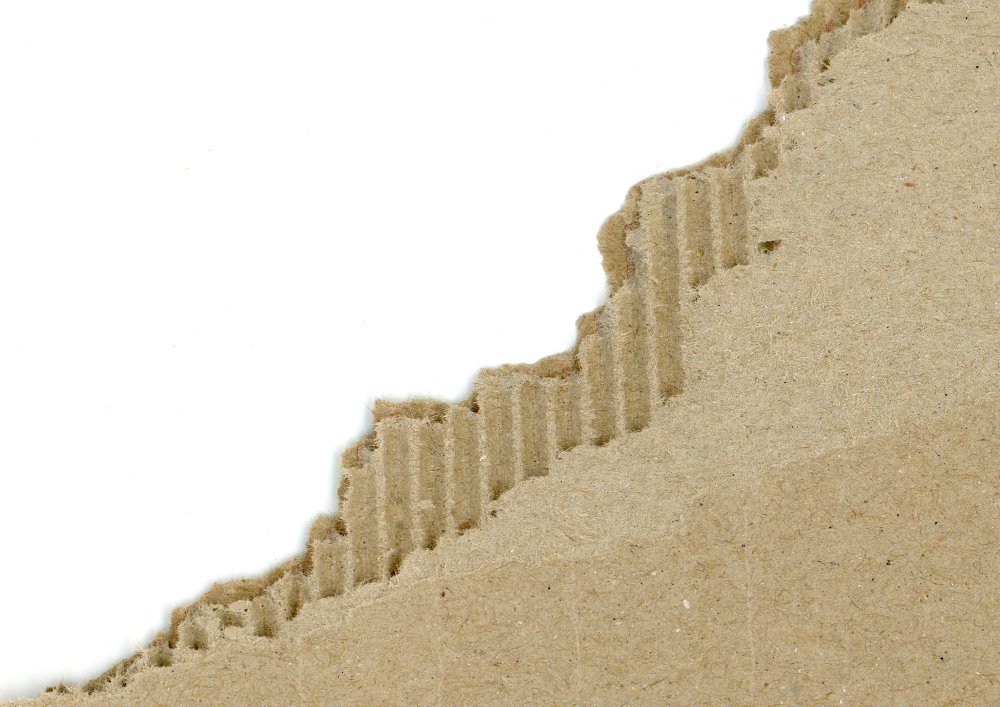

The corrugated flutes are the wavy paper layer inside. For maximum stacking strength, these flutes must run vertically, from top to bottom. Think of them like columns holding up a roof. If they run horizontally, the box will buckle and collapse under very little weight. This is a common mistake we see, and it's the first thing we check when a customer complains about weak boxes.

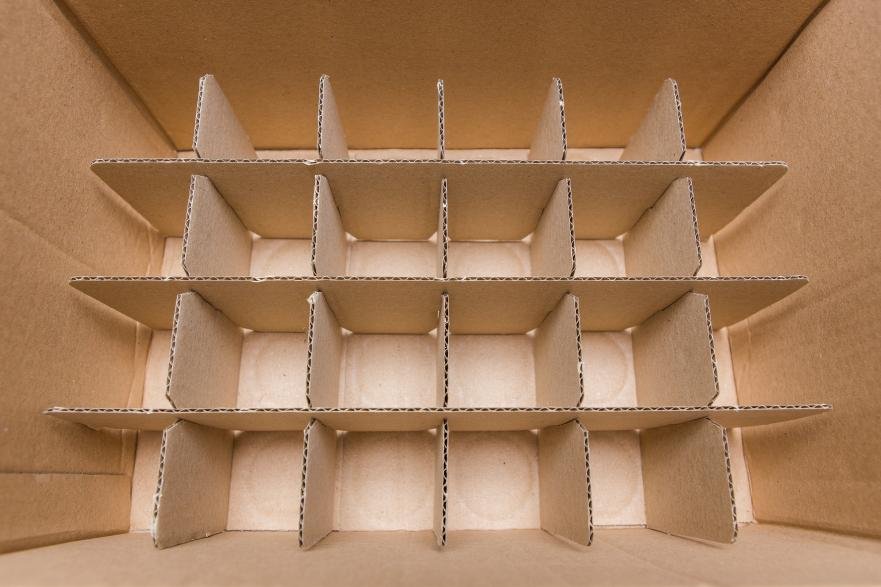

Internal Supports

Sometimes, the box itself needs help from the inside. We can design custom inserts like dividers, partitions, or pads. These not only separate and cushion products but also add a web of internal support. This reinforcement prevents the box walls from caving in.

Corner Reinforcements

The corners are the structural pillars of a box. You can make them much sturdier by taping them with strong filament tape, stapling them, or adding dedicated corner posts made of cardboard or plastic.

How to make a cardboard box solid?

Do you need a box that feels completely solid and impenetrable? This requires moving beyond a standard box and creating something that can withstand serious impact and pressure.

To make a cardboard box solid, you must combine the best materials with the best structural techniques. Use a multi-wall corrugated board¹², add a hardening coating or lamination, and incorporate form-fitting internal supports for a truly robust solution.

Making a box feel "solid" is the ultimate goal when you need maximum protection. It's about bringing everything we've discussed together. There's no single magic trick; it's a complete system. We start with the material foundation. This isn't the place for single-wall board. We use double-wall or, for heavy-duty applications, triple-wall board made with high-grade Kraft liners. Then, we look at surface treatments. A laminate or a polyurethane coating can add surface hardness and moisture resistance, preventing the board from getting soft. Finally, we build out the structure. The flutes must be vertical. We often design inserts that don't just divide the space but create a full internal skeleton. By combining material science and structural engineering, you create a package that feels less like a box and more like a crate.

Solid Box Checklist

• Material: Use Double or Triple-Wall Board.
• Paper Grade: Choose high-GSM Kraft paper liners¹³.
• Surface: Apply a hardening coating or laminate.
• Structure: Ensure flutes are oriented vertically.
• Reinforcements: Add corner posts and internal supports.

Conclusion

Hardening cardboard involves using stronger materials, adding surface treatments, and using smart structural design. The best solution balances these elements to meet your specific packaging and shipping needs.
