How can you improve the quality of a corrugated box?

Are you worried your products might get damaged during shipping? Poor quality boxes can damage your brand's reputation and lead to expensive returns. It's a problem I've helped many clients solve.

To improve corrugated box quality, focus on four key areas: use higher-grade paper liners, select the right flute type for your needs, add structural reinforcements where necessary, and ensure precise manufacturing. Proper design and rigorous testing are also vital to guarantee performance.

Over my 16 years in the packaging industry¹, I've seen how small details can make a huge difference in box quality. It’s not just about picking a box; it’s about engineering a solution that protects your product from the factory to your customer's hands. Many designers think a box is just a box, but understanding the fundamentals can elevate your packaging from a simple container to a core part of your product's success. It sounds simple, but each step has critical details. Let's dive into the questions I hear most often from designers and brand owners.

How to increase the strength of a corrugated box?

Are your boxes getting crushed under the weight of other packages? A weak box simply can't protect your products during transit. The good news is that you can easily boost its strength.

The best ways to increase box strength are by using paper with a higher basis weight, selecting a stronger flute profile like B-flute or C-flute², or upgrading to a double-wall or even triple-wall construction. The box's design and grain direction also play a crucial role.

When a client comes to me with a problem of collapsing boxes, the first thing we look at is the material and structure. It’s about finding the right balance between cost and performance. For a designer like Peter, understanding these options is key to specifying a box that works. Let's break down the main factors you can control.

Key Factors for Box Strength

Factor	Description	Impact on Strength
Paper Basis Weight	This is the weight of the paper per unit area, often measured in grams per square meter (GSM). Higher GSM paper is thicker and stronger.	High: Heavier paper directly increases both bursting strength and stacking strength.
Flute Profile	The flute is the wavy layer inside the board. Different profiles (A, B, C, E, F) offer different benefits.	High: C-flute is a great all-rounder for shipping. B-flute offers better crush resistance. Combining them into a BC-flute double-wall board gives excellent stacking strength and protection.
Wall Construction	Boxes can be single-wall, double-wall, or triple-wall. This refers to the number of fluted layers.	Very High: Moving from single-wall to double-wall can nearly double the stacking strength of a box. It's one of the most effective ways to add strength for heavy items.
Box Design	The dimensions and style of the box matter. A cube is a very strong shape. Reducing the panel size can also increase rigidity.	Medium: A well-proportioned design avoids large, unsupported panels that can easily bend or puncture.

I remember a client who was shipping heavy electronic components. Their single-wall boxes were failing during warehouse stacking. We didn't change the box dimensions at all. We simply switched them from a single-wall C-flute to a double-wall BC-flute. The problem was solved instantly. This small change in specification protected their high-value products and saved them a fortune in damages.

How to check the quality of a corrugated box?

You’ve received a new shipment of boxes. How can you be sure you got the quality you paid for? It's tough to tell just by looking. I'll show you what to check.

To check a corrugated box's quality, start with a visual inspection of the printing, die-cuts, and gluing. For strength, you should rely on industry-standard tests like the Edge Crush Test (ECT)³ or the Mullen Burst Test⁴ to validate that the material meets your specifications.

Quality control is something we take very seriously at Giftspack. A great design can be ruined by poor manufacturing. It's a challenge every product designer worries about. When a batch of boxes arrives, you can’t just assume they are right. You need a simple but effective process to verify their quality. This ensures that the box you designed is the box you received, and that it will perform as expected. Here’s a simple checklist you can follow to perform a quick but thorough quality check.

A Simple Quality Checklist

1. Print & Color Inspection

   • Are the colors consistent with your brand's Pantone specifications?
   • Is the printing sharp, or is it blurry and smudged?
   • Is the print registration correct, with no overlapping colors?

2. Structural & Assembly Inspection

   • Are the die-cuts clean and precise? Messy cuts can weaken the box and look unprofessional.
   • Are the creases scored correctly so the box folds easily and squarely?
   • Check the manufacturer's joint. If it's glued, is the adhesive applied evenly without gaps? If stitched, are the staples secure and properly spaced?
   • Do the box dimensions match the specifications you ordered? A few millimeters can make a big difference.

3. Material Verification

   • Check the Box Maker's Certificate (BMC) printed on the box flap. It should list the material specifications, like ECT or Mullen rating.
   • Does the board feel right? While subjective, you can often feel if a board is flimsier than it should be.
   • If you have the equipment, performing your own ECT or burst test is the ultimate check. Many of my clients invest in this for peace of mind.

I always tell my team that a box is an ambassador for the brand before the customer even sees the product. A box with sloppy printing or poorly glued seams sends a message of low quality. Running through these checks helps ensure your brand's first impression is a great one.

How to make a cardboard box strong?

You have a standard box, but you need it to be stronger for a specific application. You don't always need a completely new box type. There are simple tricks to reinforce what you have.

Make a standard cardboard box stronger by adding internal supports⁵ like partitions, pads, or custom inserts. You can also use external strapping, ensure it's sealed correctly with quality tape, and orient it so the flutes stand vertically for maximum stacking strength.

This is a common challenge for product designers. Sometimes the budget doesn't allow for a heavy-duty, custom-made box for every product variation. That’s when smart design and assembly techniques become your best friends. These methods focus on distributing stress and adding support exactly where it's needed, often for a fraction of the cost of upgrading the entire box. These are a few of the techniques that I have used successfully with my clients over the years.

Reinforcement Techniques

• Internal Reinforcements:

  • Partitions/Dividers: These are grids of corrugated board that create individual cells inside a box. They are perfect for shipping fragile items like glass bottles. They not only separate and cushion the products but also add significant vertical strength to the box itself. The entire structure becomes a web of support.
  • Inserts and Pads: A simple flat sheet of corrugated board placed at the bottom or top of a box can help distribute weight and prevent punctures. Custom-designed inserts can be made to hold a product securely in place, preventing it from moving and reinforcing the box's structure at the same time.

• Assembly and Sealing:

  • Proper Taping: How you tape a box makes a big difference. The "H-tape" method, where you tape all the seams on the top and bottom, creates a much more rigid and secure seal than just a single strip down the middle. Using high-quality, strong adhesive tape is also a must.
  • Vertical Flute Orientation: This is probably the most important and most overlooked factor. The flutes should always be oriented vertically, like columns, when you stack boxes. This provides maximum stacking strength. If you stack boxes on their side, the flutes can crush easily, and the stack will fail. I once visited a warehouse where a client was having issues with collapsing pallets. The moment I walked in, I saw the problem: all their boxes were being stacked on their sides. We fixed the orientation, and the problem disappeared overnight.

What makes corrugated cardboard strong?

Have you ever wondered what gives a simple piece of paper material its surprising strength? It’s not magic, it’s a brilliant and simple piece of engineering. Understanding this helps you make better choices.

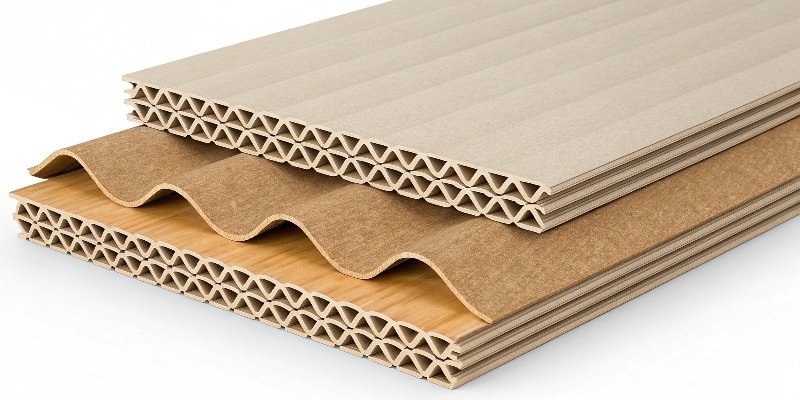

The strength of corrugated cardboard comes from its unique three-layer structure⁶. Two flat pieces of paperboard, the liners, are glued to a wavy, arched layer in the middle, known as the flute. This construction creates a material that is lightweight yet incredibly rigid and resistant to bending.

When I first started in this industry, I was fascinated by this. How can something so light be so strong? The answer lies in basic physics, the same principles used in architecture and construction for centuries. For a designer, knowing this "why" is powerful. It allows you to speak the same language as your packaging supplier and make informed decisions about material specifications. Let's look at the components.

The Science of Corrugated Strength

The magic of corrugated cardboard is how its layers work together as a team.

• The Arch Principle: The fluted medium is essentially a series of connected arches. Arches are one of the strongest architectural shapes, capable of supporting a great deal of weight. These arches create air pockets that not only provide excellent cushioning against impacts but also create a rigid structure that resists bending and pressure. When you press down on a sheet of corrugated board, the arches in the flute distribute the force across the entire sheet.

• The I-Beam Effect: The finished three-layer structure⁶ acts much like an I-beam used in construction. The top and bottom linerboards are like the flanges of the I-beam, and the fluted medium is like the vertical web connecting them. This composite structure gives the board an incredibly high strength-to-weight ratio. It can resist bending forces far better than a single, solid sheet of paperboard of the same weight.

• Material Quality: Of course, the engineering only works if the materials are right. The strength of the linerboard and the medium is critical. These papers are chosen for their specific properties.

  • Linerboard: This paper needs high tensile strength to resist bursting and puncture.
  • Medium: This paper must be able to form and hold the flute's wavy shape and resist being crushed.

The combination of this clever structure and high-quality paper is what gives the humble corrugated box the power to protect products all over the world.

Conclusion

Improving your box quality comes down to understanding the materials, design, and testing. With these insights, you can create packaging that truly protects your product and elevates your brand.

---
